Automatic Paper Roll To Sheet Cutter Machine
HSC-1500SS/1700SS/1900SS

Automatic Paper Roll To Sheet Cutter Machine

Send Message >>
Product Description

Automatic paper roll to sheet cutter machine adopts advanced design of synchronic rotary which are driven directly by high power AC servo motor with high accuracy and clean cut.

And using our patent with embedded cutting head design, that its cutting cross profile is straight and not pulling out fibers, this is key point to eliminate hairs of paper. Widely used for cutting cardboard, coated paper, Kraft paper, culture paper, art paper, duplex, packaging paper etc up to 1000gsm.

HOUSENG machine is dedicated to produce sheet cutter, Products are well used and verified by almost all top cosmetics and pharmaceutical packaging customers, and promise their is no risk for long term running of your products in future. Consider this kind of machine to improve quality and save cost, To improve efficiency.

Video

Automatic paper roll-to-sheet cutter machine is a machine that can automatically turn large paper rolls into single sheets of paper. It is manufactured by the Chinese Houseng brand cardboard manufacturer. It is characterized by double helix rotary knife cutting, high precision, high-speed rotation, cost-effective, improves efficiency, and reduces paper loss.

Product Feature
  • HSC-SS series run with high precision, stable operation, low energy consumption and high effciency, are developed by technology from German and decades years of experience we have. lt's widely used in the paper industry and printing industry. Perform well in cardboard paper, coated paper, kraft paper, culture paper, double gummed paper, gloss photo paper, gold and silver cardboard, aluminum paper, laser paper, packaging paper etc.
  • Double rotary spiral cutter rollers can cut paper clearly in less force; German precision bearing and cutting knife achieve high cutting precision; Touch interface control is easy to operate; The reasonable infection device can remove the curled paler effectively, thus strength tension of the paper roll. Sheets can directly into printing without trimming after cutting, which do improve economic effciency, reduce production costs.
The Content Of Standard Configuration

cardboard paper, coated paper, kraft paper, cultural paper, writing paper, double qummed paper, glos photo paper, gold and siliver cardboard, aluminum paper, laser paper, packaging paper etc.

01
Auto-Splicer
02
Motorized Double Decurler
03
Slitting & Trimming Knives
Automatic Change System
04
Double Rotary Sheeter Group
05
Conveying Overlap Part
06
Collection
Technics Of Equipment

According to HOUSENG MACHINE, are mainly used for paper cutting in Paper Mill, Printing House and etc.

Mainly process, including: Unwinding—Feeding—Cutting—Conveying—Collecting .



Function Description:
Cutting Unit

The double KNIFE cutting unit has a synchronic rotary cutting knife like scissors on the material to make a smooth and accurate cutting for paper from 150gsm and up to 1000gsm.

The knife roller is using the most powerful driver from UK CT.

Precision rotary sheeter groove is processed by imported advance processing center with high accuracy and stability,

High quality gear box, using no clearance design gear. which guarantees the stability of the tool body during high-speed operation, completely solve the problem of scratches and light spots, after cutting the edge is neat and smooth, clean cut.

Double Arm Unwind stand with web tension controls and pneumatic brake units.

Adopt Italian RE control system and pneumatic components are adopted to guarantee the stable operation of the brake control system and the accuracy of every aerodynamic action.

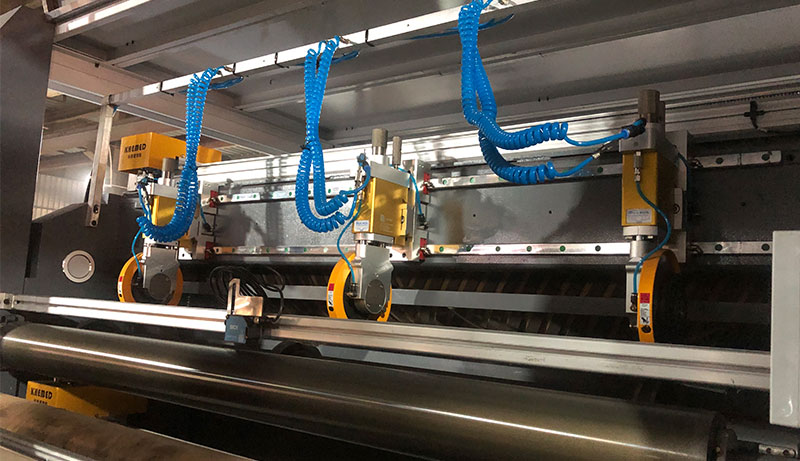

Three sets of MAXCESS pneumatic slitting knife ensure stable and clean slitting, High rigid tool post article can be applied to 400cut/min speed environment, improve the production efficiency and ensure the material quality stability.

Electric control part

Adopt German imports of Siemens PLC and UK OF CT servo drive control system, make the operation more convenient, automation, cutting length, number and the total number of finished products, etc., can be directly in touch screen input.

High efficiency and energy saving of high power CT servo drive rotary knife shaft, and cooperate with the energy storage tank, effectively reduce electricity consumption, improve the efficiency, reduce the production cost.

Transportation parts

Patent device-A precision structure can adjust the synchronous deceleration wheel, easy to operate, it is effective to protect surface of paper, so there will be no scratching on surface, and also will not have the facula whenever speed is high or low.

Automatic splicer (optional)

High performance automatic splicer is twin-head automatic paper machine.

The control system is from Taiwan with the features of long service life, high flexibility, and automatic splicer as soon as the imperfect broken paper is sensed, easily for operation for 100 to 500 GSM papers.

Slitting & trimming knives automatic change (optional)

The slitting & trimming knives are rapidly automatically changed by through a pair of smart and precision mechanical hands, which can greatly improve your production efficiency and its production performance on the frequent size changes of paper.

According to different cutting requirements, It can be coordinate with different knife type to form a different cutting solutions for different cutting requirements, such as electronic knife, automatic type, manual type, Siamese type, press-cutting type, etc.

Automatic logistics system

Tray chain conveyor mainly adopts five row straight plate chain transport, motor driven design, its function is to achieve linear material transport, ultra-low transport. A series of pallet chain conveyors combined in series with each other have realized the long or short distance linear conveying of materials according to the region and process design.

Modular design, high degree of standardization, flexible process arrangement and adjustment, the equipment is basically maintenance-free.

Intelligent tray placement

Six degrees of freedom industrial robot is a general robot, the shape of the robot is tight All joints are installed with high-precision reducer, high-speed joint speed can carry out flexible operation, can carry out handling, palletizing, assembly, injection molding and other operations, with flexible installation mode. Reasonable design fixture, simple structure, convenient maintenance.

Layout





1. Automatic Splicer

High performance automatic twin-head paper splicer with Taiwan control system, can splice paper automatically, perform out by high flexibility and long service life, suitable for base paper which grams of 80g/m²-400g/m².



2. Intelligent Pallet Placement

6 degrees of freedom industrial robot is an universal type easy to maintain. Equipped with an high-precision reducer on each joint, it can flexibly complete works like handling, stacking, assembly and injection molding.



3. Auto-Material Flow

The tray chain conveyor mainly adopts 5 rows of straight chain conveyor, and uses the motor drive the material transport in ultra-low position straightly, which is a modular design and reach high degree of standardization. Hidden photoelectric switch can prevent photoelectric sensor or cardboard damage, servo motor built-in to save space, reversible operation, fexible adjustment, basically mainte-nance-free.



4. Non-Stop Paper Collection

Combined the international advanced concept, we designed non-stop paper collection system, is the latest product with independent intellectual property rights we won. lt is composed of short insert plate, long insert plate, friction belt and various auxiliary accessories. When the paper on the lifting platform reaches the rated amount, the short insert board lifts the end of the subsequent paper, and the long one hold the stack to act as collecting platform, so that workers or other automatic equipment can carry the stack. So as to achieve non-stop and continuous paper collecting, effectivelyimprove effciency and reduce costs.



5. Slitting & Trimming Knives Automatic Change System

APS-L series high-precision automatic positioning and slitting system matches high-precision sliting requirements. inteligently, accurately and rapidly, the sliting and trimming knives is auto-changing by manipulator,thus greatly improving the ability and effciency when product variety changing.According to different cutting requirements, it can work out diferent cutting solutions by coordinating with different knife, such as automatic type, manual type, connected type and pressure cutting type sliting knife, and electronic knife, etc.




Main Technical Parameter
ITEM PARAMETERS Cutting Length Speed(m/min) Speed lcuts/min)
Model HSC 1500SS/1700SS/1900SS 1600≤X 210 <131
Cutting Pattern Double rotary sheeter 1400≤X<1600 260 ≥162<185
Range ofGram Weight 80-1000gsm 1200≤X<1400 280 ≥200<233
Max.Roll Diameter 1800mm(71”)Max 1000≤X<1200 300 ≥250<300
Max.Paper Cutting Width 1500mm/1700mm/1900mm 800≤X<1000 300 ≥300<375
Total Power 108kW 700≤X<800 300 ≥375<400
Cutting Length 400-1650mm 650≤X<700 230 ≥328<353
Cutting Accuracy +/-0.15mm 600≤X<650 180 ≥246<300
Air Compressor Requirement 0.8MPa 550≤X<600 160 ≥266<290
Weight 26000kgs/28000kgs 500≤X<550 120 ≥218<240
Overall Dimension L18241×W5900×H2533mm 450≤X<500 90 ≥180<200
    400≤X<450 70 ≥155<175
Automatic Paper Roll To Sheet Cutter Machine Application Example

HSC1500SS/1700SS intelligent high-precision double spiral slitting machine is widely used in cardboard, coated paper, kraft paper, cultural paper, offset paper, high-gloss photo paper, gold and silver cardboard, aluminum foil paper, laser paper, tobacco and alcohol packaging paper, etc.

The cutter roller adopts a double-rotating spiral cutter roller design, which has small cutting force, clean paper cross-section, high efficiency, and stable rotation; German precision bearings and cutting knives provide high cutting accuracy; light-touch computer interface control, easy to operate; well-designed feedback The curling device can effectively remove the curl of the paper roll, making the paper flatter, which is more conducive to the stability of the paper roll tension.

HSC1500SS/1700SS intelligent high-precision double spiral slitting machine is a high-efficiency, high-precision and high-stability paper processing equipment. The cut paper does not need to be trimmed and can be directly put on the printing press, which effectively improves economy and reduces production costs. It is also a paper product processing machine commonly used in the papermaking and printing industries.
